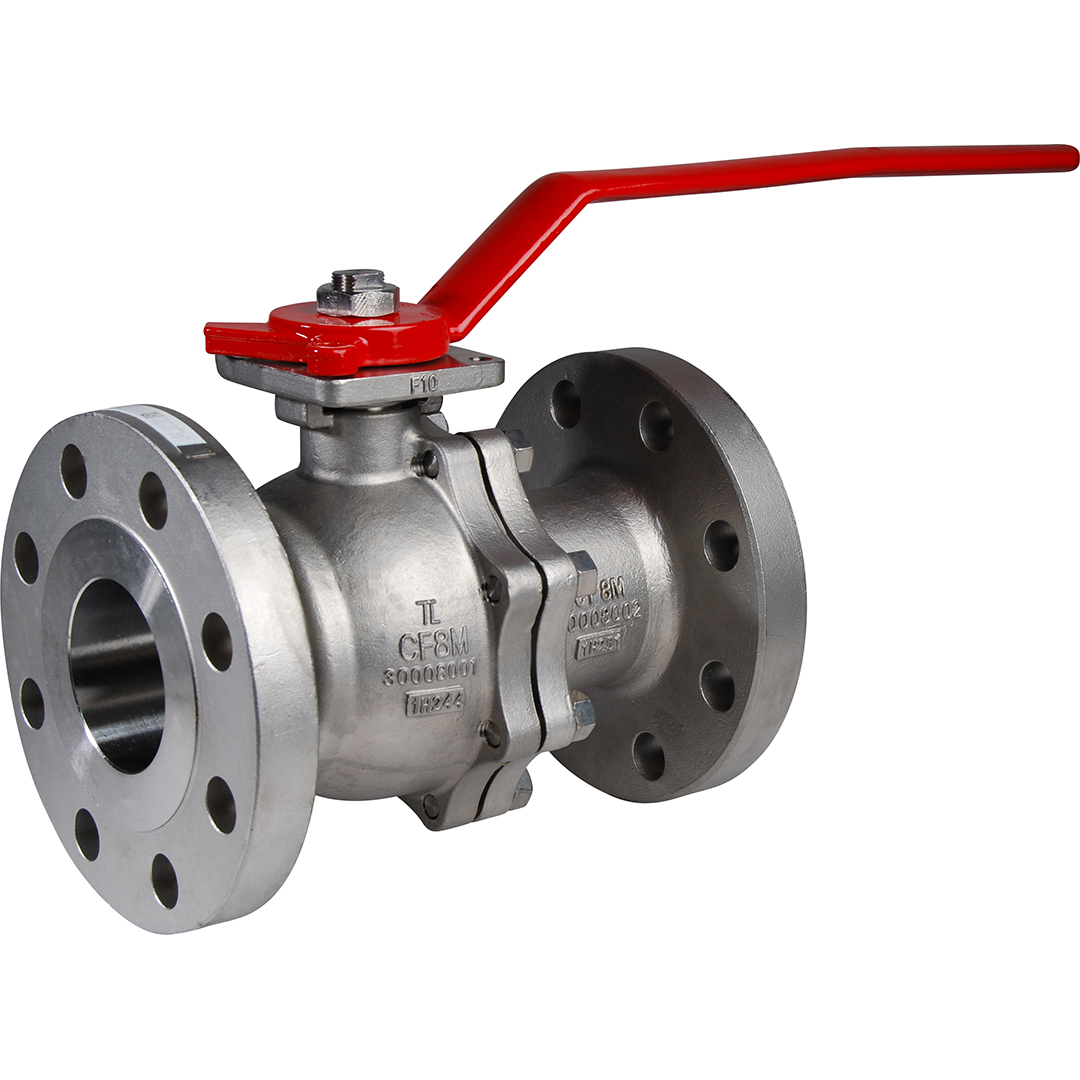

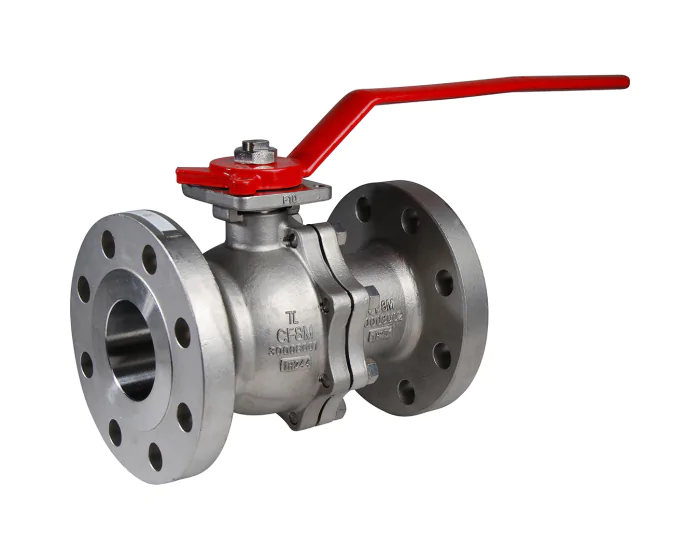

Stainless steel ball valve 769 2 piece body RF ANSI300 HT 1/2''
€141.76
(excl. btw)
The 769 series ball valve is a split-body model with Class 300 flanges, made of stainless steel with a TFM 1600 PTFE seat, fire safe and resistant to high temperatures. For chemical, petrochemical industries and hydraulic installations.
Specification
Value
DN inches NPS
1/2''
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - ASME B16.34
CE risk category
III Module H
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004
EN face-to-face standard
EN 558 Series 4
ASME face-to-face standard
ASME B16.10
Face to face standard
EN 558 Series 4. ASME B16.10
Brand
ICP VALVES
Tightness test standard
EN 12266-1 Rate A. API 598
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class CH
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Lockable
Yes
Square, star (mm)
MEP M10x7
ATEX compatible
Yes
Torque (Nm)
10
DN
DN15 - 1/2''
Face to Face (mm)
1740.0
Fluid
Hydrocarbons. gas
Kv (m³/h)
20.0
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
50
Connections
Flanged #300 PN50
Seats
TFM 1600
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
230
TS min (°C)
-50
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
2 years
CE
Yes
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6586
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2''
769015
S1006803
€141.76
(excl. btw)
add to cart
6587
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4''
769020
S1006804
€173.26
(excl. btw)
add to cart
6588
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN25 - 1''
769025
S1006805
€215.26
(excl. btw)
add to cart
6589
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2
769040
S1006806
€406.37
(excl. btw)
add to cart
6590
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN50 - 2''
769050
S1006807
€468.31
(excl. btw)
add to cart
6591
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN80 - 3''
769080
S1006808
€941.89
(excl. btw)
add to cart
6592
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN100 - 4''
769100
S1006809
€1,473.21
(excl. btw)
add to cart
6593
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN150 - 6''
769150
S1006810
€2,956.93
(excl. btw)
add to cart
6594
Flanged #300 PN50 Stainless steel CF8M (1.4408) Full Split body DN200 - 8''
769200
S1006811
€6,002.04
(excl. btw)
add to cart
